Simulated Infinite Scrolling

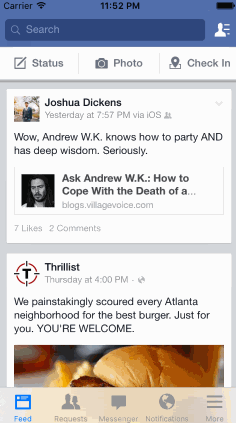

In this guide, we will simulate an Infinite Scrolling experience. Simulated Infinite Scrolling allows a user to continually scroll through content, pausing briefly at the bottom of each scroll to simulate network loading. To achieve this effect, we will leverage the following concepts:
The Activity Indicator will be positioned behind the ScrollView near the bottom of the screen. It will only be revealed when the ScrollView scrolls all the way to the bottom, given ScrollView content insets that we will set later.

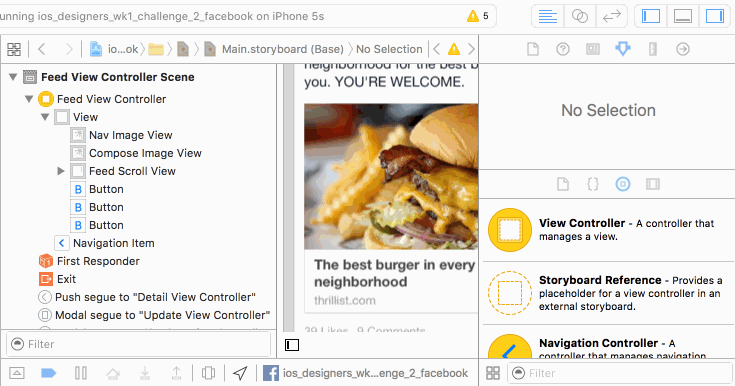

- Add a UIActivityIndicatorView just above the ScrollView in the Document Outline, this will position the Activity Indicator behind the ScrollView. The ActivityIndicator should NOT be inside the scrollView, rather it should be a child of the ViewController's main view.
- In the Attributes Inspector of the Activity Indicator, Set the Behavior to Animating.
It is possible to get the Activity Indicator positioned near the bottom of the ViewController in Storyboard, however it can be tricky because dragging the Activity Indicator down will most likely embed it into the ScrollView, which we don't want. Instead, we will set the Activity Indicator position programmatically within the viewDidLoad method.
-
Create an outlet for the Activity Indicator. We will name ours,
infiniteLoadingIndicator. -
Set the Activity Indicator position within the
viewDidLoadmethod. In order to place it 65px above the bottom of the main view, we can say,infiniteLoadingIndicator.center.y = view.frame.height - 65. -
Set the ScrollView Content Inset. In order for the ScrollView to scroll up enough to reveal our Activity Indicator, we need to set the content Inset for the bottom. You can do this in the ScrollView's Size Inspector, but since we are already setting things up in
viewDidLoad, we will set the Content Inset for the bottom programmatically.
// Position the Activity Indicator 65px above the bottom of the screen
infiniteLoadingIndicator.center.y = view.frame.height - 65
// Set the ScrollView bottom Content Inset to 130px
feedScrollView.contentInset.bottom = 130We will need to interface with our ScrollView more programmatically in order to get contentOffset data as well as call a special ScrollView method when our ScrollView has come to a stop. To get his information from our ScrollView, we will first need to register for Scroll Events.
We will be creating a new ImageView each time we scroll to the bottom of our ScrollView. In order to figure out where we should place the next ImageView as well as how much to adjust the contentSize of our ScrollView, we will need to keep track of how many ImageViews have been created. We will do this in a variable called, numberOfImageViews.
- Create a "global" variable, (up where your outlets are), to keep track of how many ImageViews have been added. Give it an initial value of 1.
// Define variable to keep track of added ImageViews.
// Initial Value of 1 represents the initial ImageView
var numberOfImageViews: CGFloat = 1-
We will employ a special ScrollView method,
scrollViewDidEndDeceleratingto tell us when the Scroll has come to a complete stop. You can put this method anywhere in the ViewController. -
When the ScrollView stops, we need to check if the ScrollView has indeed reached the bottom. We will use a conditional statement and the contentOffset of the ScrollView to help us tell if the ScrollView has scrolled all the way to the bottom.
if feedScrollView.contentOffset.y + feedScrollView.frame.size.height >= feedScrollView.contentSize.height { // ScrollView is at the bottom } -
We will add a delay method to give the Activity Indicator a moment to animate before we add on the next ImageView to the ScrollView Content.
-
When the delay is finished, we will programmatically create a new Image View, put another copy of our Feed Image in it, and position it directly below the previous ImageView. We will reference the variable we created to keep track of how many ImageViews have been created and multiply it by the height of our ImageView to figure out how far down to place it each time.
-
Since new ImageViews are being added to our ScrollView, we will increase the contentSize of our ScrollView each time we add a new ImageView. Again, we will reference our
numberOfImageViewsvariable, multiply it by the height of our new ImageView, and add that to the original contentSize. -
Finally, we will increase the value of our
numberOfImageViewsvariable by 1
// The scrollView has come to a complete stop, so do the following...
func scrollViewDidEndDecelerating(feedScrollView: UIScrollView) {
print("Scrolling Stopped")
// If the scrollView offset + the scrollview height is greater than or equal to the height of the scrollView content,
// We have reached the bottom, so...
if feedScrollView.contentOffset.y + feedScrollView.frame.size.height >= feedScrollView.contentSize.height {
print("You reached the bottom")
// Delay for 1 second then...
delay(1, closure: { () -> () in
// Create frame for new imageView, same as feed ImageView
let newFrame = self.feedImageView.frame
// Create new ImageView with newFrame
let newImageView = UIImageView(frame: newFrame)
// Create new image, same as feed Image
let newImage = UIImage(named: "home_feed")
// Set new ImageView image to newImage
newImageView.image = newImage
// Position the new imageView below the previous image view
newImageView.frame.origin.y = self.feedImageView.frame.origin.y + self.numberOfImageViews * self.feedImageView.frame.size.height
// Add imageView to scrollView
feedScrollView.addSubview(newImageView)
// Increase the feedScrollView contentSize with each additional imageView added using
feedScrollView.contentSize = CGSize(width: self.feedImageView.frame.size.width,
height: self.feedImageView.frame.size.height + self.numberOfImageViews * newImageView.frame.size.height)
// add 1 to scrollViewCount
self.numberOfImageViews += 1
})
}
}
