The Detect Demo demonstrates the capability of the Kairos Face Recognition API to detect facial features by giving the user four methods for detection. In each method, image data is passed to the API, which returns a JSON object containing facial feature data.
View the app here: https://demo2.kairos.com/detect
The app is basically a single page application, which is viewed at index.html.
The Emotion API demo app is comprised of four modules:
- Examples Module
- Webcam Module
- Upload Module
- URL Module
Five pre-processed image examples are presented to the user.
Upon clicking one of the image thumbnails, a POST request is made to the Kairos API with the ID of the selected video using the following endpoint: https://api.kairos.com/detect
To accomplish this, an AJAX script in the detectDemoApp.js file POSTS to the route /detect/send-to-api (the routes for the demos are in the main.go file). This route calls the Golang method SendToApiDetect which makes a POST request to the https://api.kairos.com/detect endpoint. The JSON response is sent back asynchronously to the detectDemoApp.js object. This response is then sent to the apiCallback() method, which formats the JSON response for viewing, and draws a box around the detected face, along with various other feature points.
The JSON object for each of the modules is displayed when the API response is received.
The name/value pairs in the JSON object are color-coded using the syntaxHighlight() function in detectDemoApp.js. The colors are set in emotion.css (#json-container response blocks). A COPY button is provided, which allows the user to copy the JSON response to the clipboard.
The webcam module uses the built-in web camera on the user's device. When the WEBCAM link is clicked, the user is given 3 seconds to complete the capture.
In order to make the capture, getUserMedia() creates a video stream. After 3 seconds, the takePicture() method uses Canvas to draw the image and get the image data. This data is posted to the route /detect/send-to-api, calling the Golang method SendToApiDetect, where a POST request is made to the Kairos API, using the following endpoint:
https://api.kairos.com/detect.
The API response is sent to the apiCallback() method in detectDemoApp.js which formats the JSON response for viewing, and draws a box around the detected face, along with various other feature points.

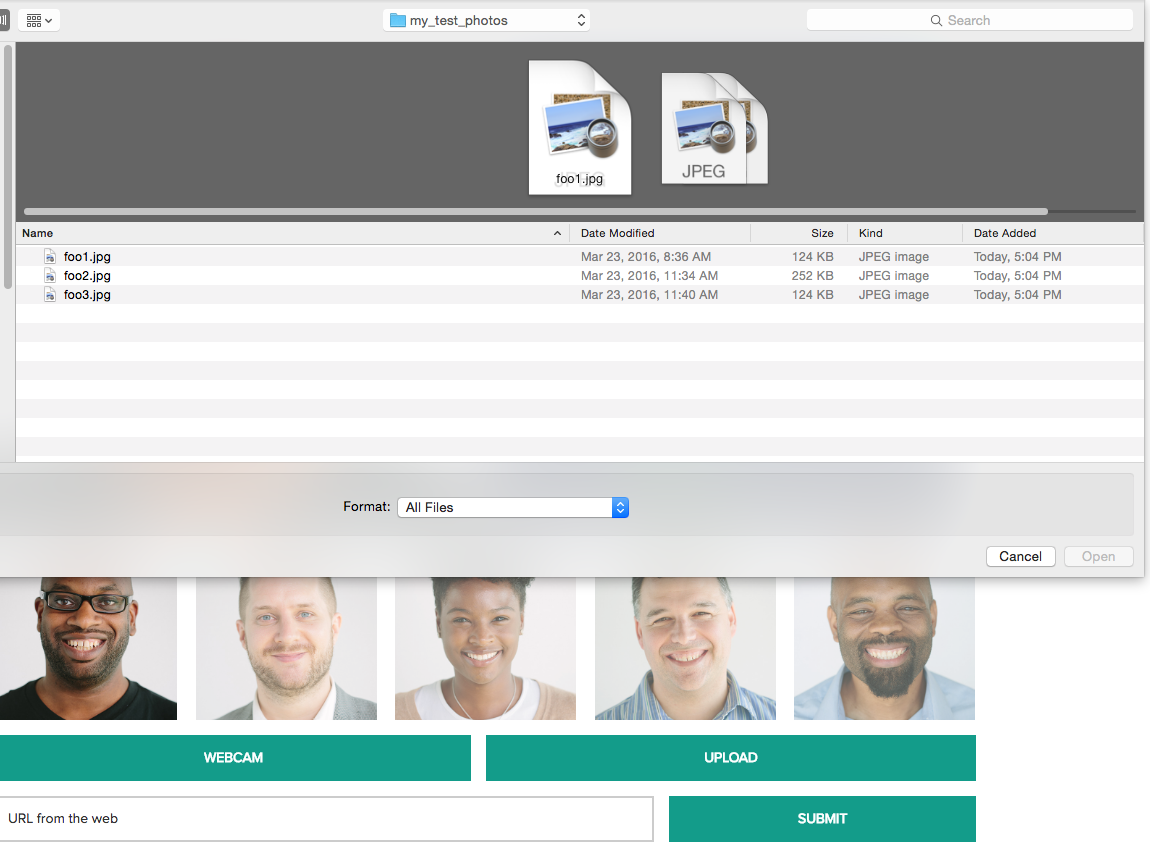

Clicking the UPLOAD link opens the upload dialog on the user's local system.
When a file is selected, Canvas is used to retrieve the image data. This data is posted to the route /detect/send-to-api, calling the Golang method SendToApiDetect, where a POST request is made to the Kairos API using the https://api.kairos.com/detect endpoint.
The API response is sent to the apiCallback() method in detectDemoApp.js which formats the JSON response for viewing, and draws a box around the detected face, along with various other feature points.
The URL of a photo on the web can be entered for analysis.
When a URL is entered, the image is written to Canvas and the image data is retrieved. Similar to the other modules, the image data posted to the route /detect/send-to-api, calling the Golang method SendToApiDetect, where a POST request is made to the https://api.kairos.com/detect endpoint.
As in the other modules, the API response is sent to the apiCallback() method, where the JSON response is formatted for viewing, and a box is drawn around the detected face, along with feature points.
The functionality for a number of user interactions is contained within the detectUi.js file. Among them are:
- Click functionality for Example thumbnails
- Functionality for Copy to Clipboard button
- Webcam button functionality
- Upload functionality
- URL from web functionality
If ?option-panel=yes is added to the URL of the demo, a panel is revealed underneath the example images containing a slider/input box where the user can enter values for minHeadScale, and also radio/checkbox buttons for selector. The payload which is sent to the API is also displayed. See the docs for detailed information on these arguments: http://kairos.com/docs/api/
Javascript ibraries hosted by content delivery networks:
- jquery.js
- jquery-ui.js
- bootstrap.js
- clipboard.js (used for copy function in JSON display)
Note: These dependencies can be also be saved locally.
The following javascript libraries are implemented:
- exif.js - used to retrieve orientation data from images (used in utils.js for image uploads)
- transparentImageData.js - provides transparent background for canvas drawing
The following custom javascript libraries are used:
- detectDemoApp.js - javascript object responsible for primary app functionality
- detectUi.js - a collection of javascript functions to enable user interactions
- utils.js - a collection of javascript methods for global use (canvas drawing, exif data, URL and JSON validation, aspect ratio calculations, retrival of data from image, mimetype checking, image rotation, and others)
Pull requests accepted!! ...
