Istio Security POC: Zero-Trust Architecture

This project is a Proof of Concept (POC) demonstrating how an Istio service mesh can provide zero-trust security and decoupled identity passing.

Demo

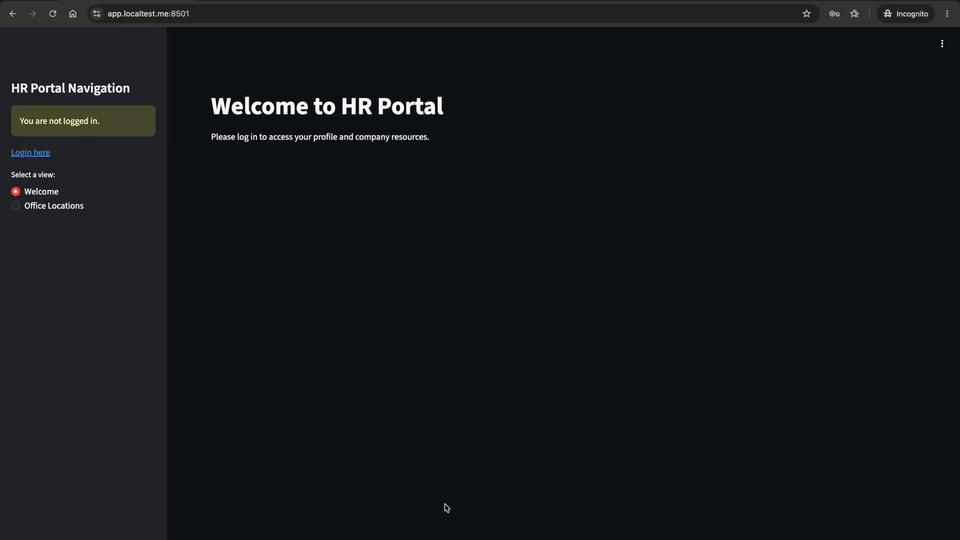

Walkthrough of the Istio security POC (login, persona-based access, Cerbos + RLS).

Architecture

The architecture enforces strict service-to-service authentication (mTLS & AuthZ) and utilizes a sidecar EnvoyFilter to securely translate a platform-standard identity header (x-mesh-identity) into custom application-specific headers.

For an in-depth explanation of the design, see the Architecture Document.

Quickstart (Local Testing)

To run the tests for the currently implemented services:

1. Run Python Tests
   This script runs the pytest suites for all existing Python applications.

   ./scripts/test-python.sh

2. Run Cerbos Policy Tests
   This script runs the Cerbos policy tests.

   ./scripts/test-cerbos.sh

3. Run the UI (after cluster is up)
   The Streamlit UI runs locally on the host (outside the cluster). Requires mkcert (brew install mkcert nss).

   ./scripts/create-local-certs.sh   # one-time: generates trusted certs
   ./scripts/run-ui.sh               # starts UI at https://app.localtest.me:8501

4. Run the security attack suite (after cluster is up)
   Manual negative-path tests across 12 attack categories. See security-tests/ATTACKS.md.

   pip install -r security-tests/requirements.txt
   ./security-tests/run-attacks.sh

For full local cluster setup and end-to-end validation, see the Setup and Run Guide.

Demo users (login & verify)

After the cluster and UI are running (setup guide), open https://app.localtest.me:8501, click Login, and use these Keycloak accounts:

Persona	Username	Password	What to check
Employee	alice.employee	alice-password	Own profile shows full PII/salary; other employees are limited
Manager	mary.manager	mary-password	Direct report (Alice) shows salary band, not exact salary
HR Admin	henry.hradmin	henry-password	HR fields on employees; no IT asset serials
IT Admin	ivan.itadmin	ivan-password	Minimal employee fields; full IT asset access

Repository Structure

• apps/ - FastAPI microservices, Streamlit UI, auth-service, and database seeder
• cerbos/ - Cerbos policies and tests
• db/ - PostgreSQL initialization scripts and migrations
• deployment/ - Kubernetes manifests (base, apps, data, identity, networking, security)
• docs/ - Architecture and setup documentation
• kind/ - Kind cluster configuration
• scripts/ - Automation scripts for cluster management and testing
• security-tests/ - Security attack suite (12 categories; see ATTACKS.md)
