Controlling LEDs with an output shift register

Caution

This tutorial is obsolete. See the updated documentation to learn how to use output shift registers and LED drivers with MobiFlight.

As you continue to build panels you may encounter situations where you have more LEDs to control than there are pins available on your Arduino. The solution is to use a shift register like the 74HC595. These allow you to have individual control of 8 LEDs while only using three pins on the Arduino. With the addition of a fourth pin you can also get PWM control of the LED brightness.

MobiFlight supports up to 32 bits of shift registers in a chain (typically four eight-bit chips), and up to six chains of output shifters can be connected to a single Arduino.

What you'll need

1. A 74HC595 chip
2. 8 LEDs
3. 8 resistors (220Ω or similar)

Making the connections

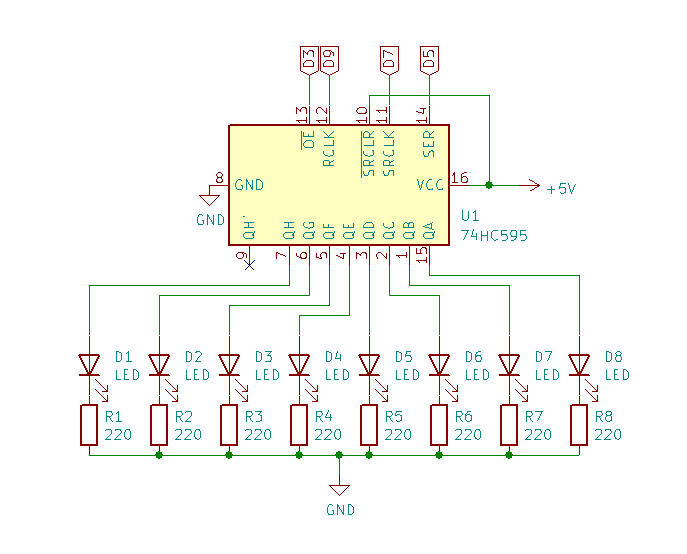

Connect the 74HC595 to your Arduino and LEDs as follows:

For a more detailed tutorial on how to make the connections see this blog post from Last Minute Engineers.

Device configuration - shift register

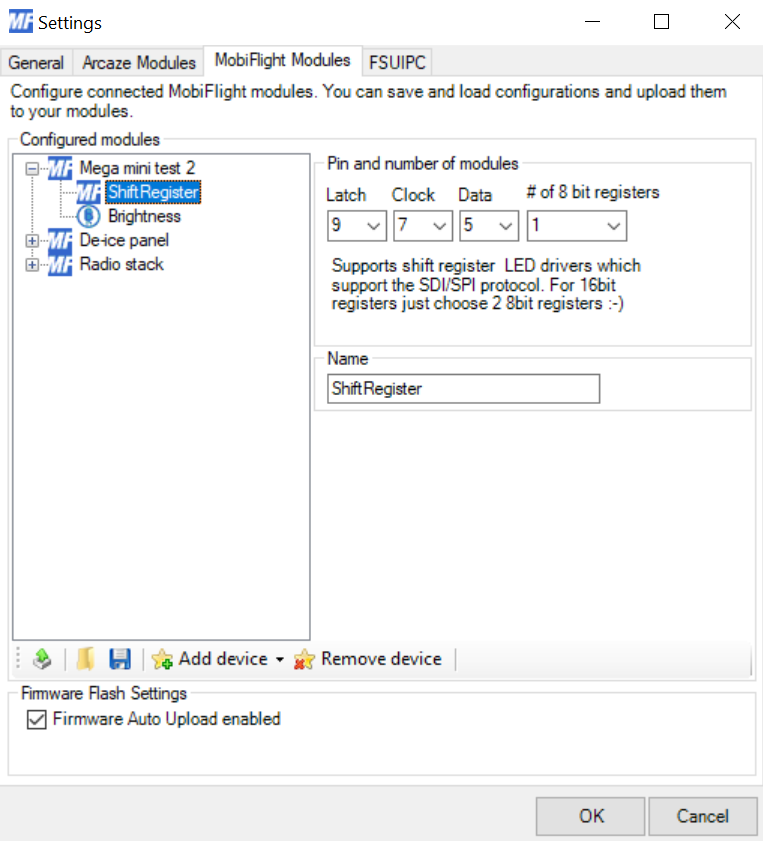

Configure a new device for your Arduino as follows:

Note that you are only mapping the three pins to load data into the 74HC595. The brightness control is configured as a separate device in the next section. If you use different pins than D5, D7, and D9 here is how you should map the dropdowns in MobiFlight to the pins on the 74HC595:

MobiFlight setting	74HC595 input	74HC595 pin
Latch	RCLK	12
Clock	SRCLK	11
Data	SER	14

Device configuration - brightness

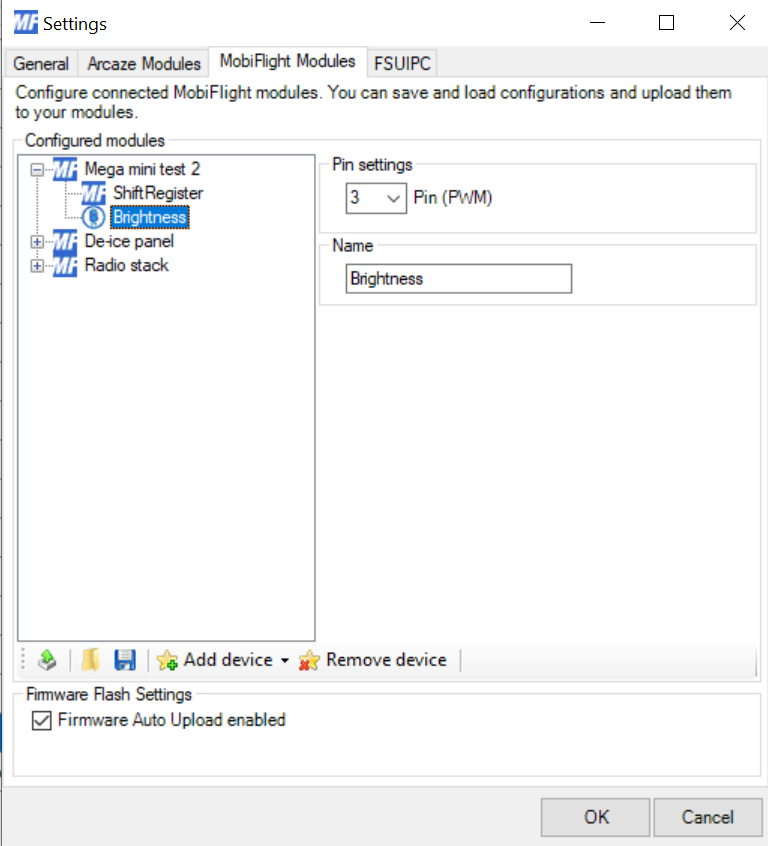

Configure a new device (LED / Output) for your Arduino as follows:

Note that the selected pin must support PWM. If you do not want to add support for brightness control skip this step and connect pin 13 of the 74HC595 (~OE) directly to ground.

MobiFlight configuration - LED output

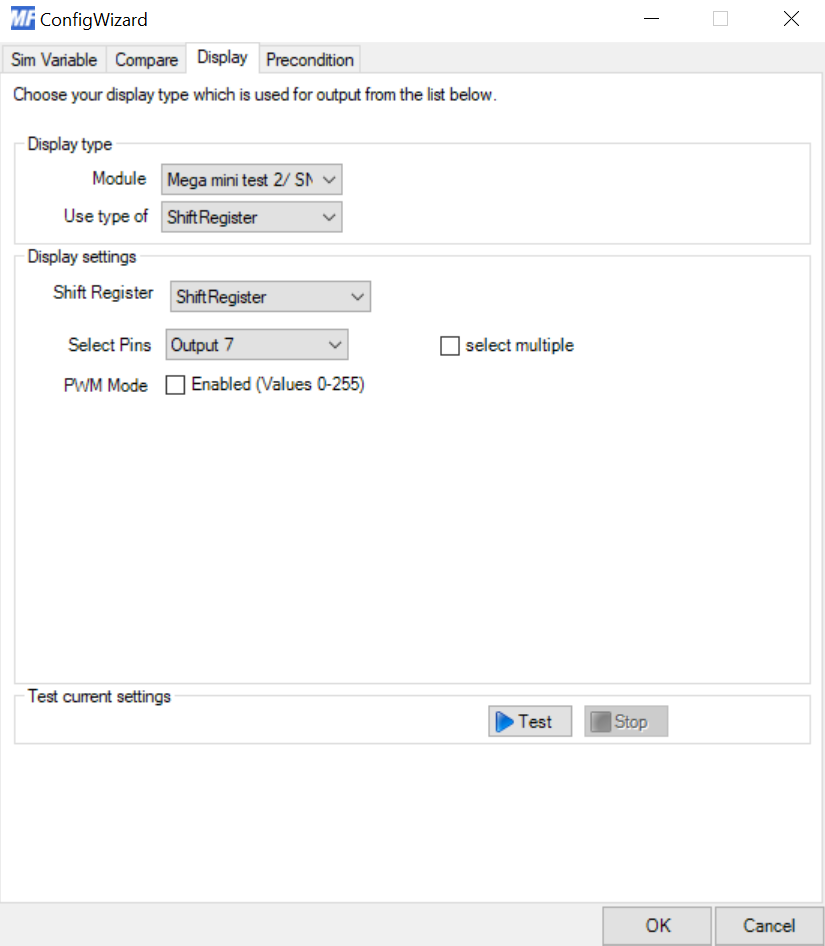

For each output you want to assign to an LED configure the output as follows:

The Select Pins dropdown will show eight different possible outputs. Select the output associated with the LED you want to light up based on the output. Add additional output configurations for each additional value you want to display, selecting a different output for the remaining configurations.

MobiFlight configuration - brightness output

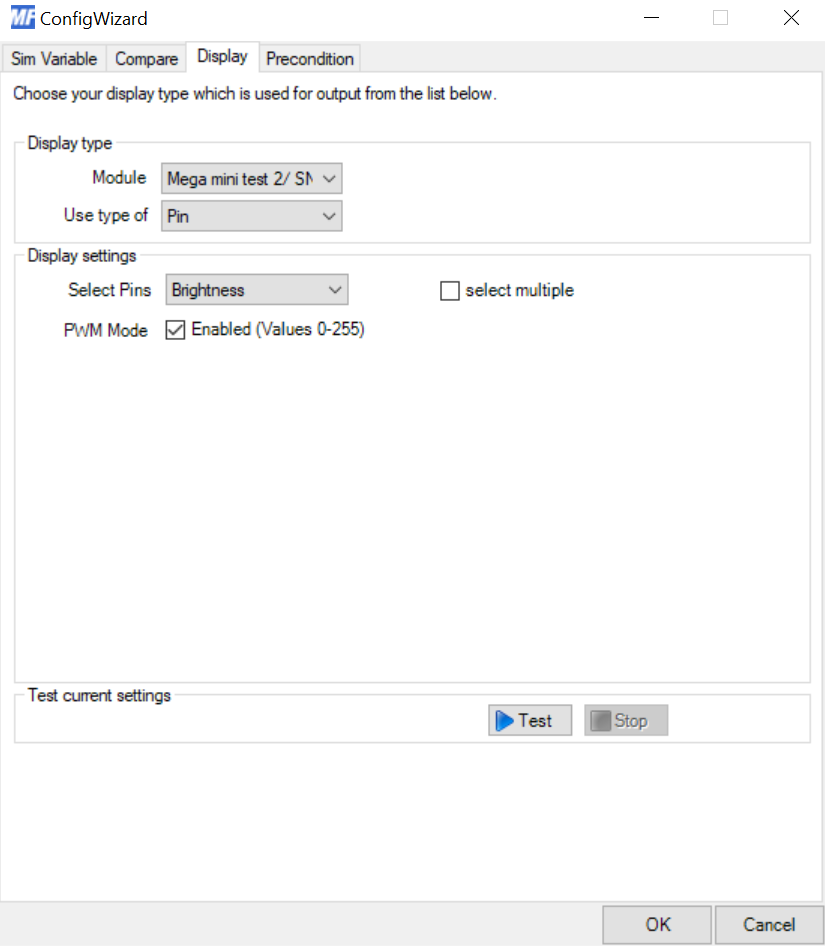

If you connected the ~OE pin to your Arduino you can configure an output to vary the brightness of the LEDs as follows:

The output value must be in the range of 0-255 to control the brightness so you may need to apply an output transformation to the raw value. It is common for the brightness value to get reported from the sim as a percent so a transformation like this will scale the value appropriately:

255 * ($/100)

Next steps

The basic shift register support opens up a wide range of possibilities for MobiFlight. While this tutorial walked through using a basic shift register the same concepts apply to other chips that function like shift registers. LED control chips like the TLC5917IN, TLC5940 and DM13A work the same way with MobiFlight but have the added benefit of ensuring constant current to the LEDs while only requiring a single resistor. While the wiring is slightly different the settings in MobiFlight are the same.

Alternative compatible components

The following drivers should be pin to pin compatible, albeit with different packages and sometime (mostly negligible) performance differences, but be sure to always check the datasheet of a given component to be sure. They usually have an example circuit. If unsure, politely ask on #hardware or #pcb-design on Discord. Also, if you use any of these listed below, feel free to add coments and vendor links after them,

• STP16CP05

• TLC5927

• TLC5928

• TLC59283 (SSOP24 p0.64) (cheap on Mouser)

• TB62701

• TB62706

• TB62709

• TB62747 (SSOP24 p1-p0.64) (cheap on Mouser)

• TC62D748 (SSOP24 p0.64) (cheap on Mouser)

• DM13A (SSOP24 p1-p0.64)

• DM134/5/6 (SSOP24 p1-p0.64)

• MBI5024 (SSOP24 p1-p0.64)

• MBI5026 (DIP-SOP-SSOP)

• MBI5041 (SSOP24 p1-p0.64)

• SCT2210

• SCT2026

• FD9802
