Mazda Miata 2001

72 pin Connector

See also Mazda Miata 2001 ABS

For engine wiring see Mazda Miata 2002

Automatic Transmission

SB101 9090 SB131 9090 Aisin

03-70le A42DE

pos	color	desc	type	my color
A	light green	"1" selector		blue
B	pink/blue	"2" selector	seems to be +12 in wire in 2	white
C	yellow/black	"D" selector	seems to be +12 in wire in Drive	orange
D	red/yellow	"R" selector	+12 in wire if in reverse	green
E	*	*	*
F		"N/P" selector
H	*	*	*
J	*	*	*
K		O/D off switch
L		O/D off indicator
M	*	*	*
N	*	*	*
O		Communication with ECU
Q	*	*	*
R	Lt Green/Red	+5v volts from ECU		red
T		cruise control module
V/U	Green/Black	TPS Sensor analog signal		green
W	red	input speed sensor		red
Z	white	input speed sensor		white
AA	*	*	*
AC	Black/White	Tachometer (?)		white
AD	*	*	*
AE	yellow	output speed sensor		blue
AF	orange	output speed sensor		orange
AG	Green/Orange	speedometer (?)		green
AH	*	*	*
AI	*	*	*
AJ	*	*	*
AL		Communication with ECU
AN	Blue	shift solenoid B 18 Ohm		blue
AO	Blue/Orange	TCC solenoid	18 Ohm	orange
AP	BLK/BLU	GND		black
AQ	Yellow/Green	shift solenoid A 18 Ohm		green
AR	Blue/Red	+12 all times		red
AS	Black/Yellow	+12 running		red

R(AE,AF)==600 ohm

R(W,Z)==400 ohm

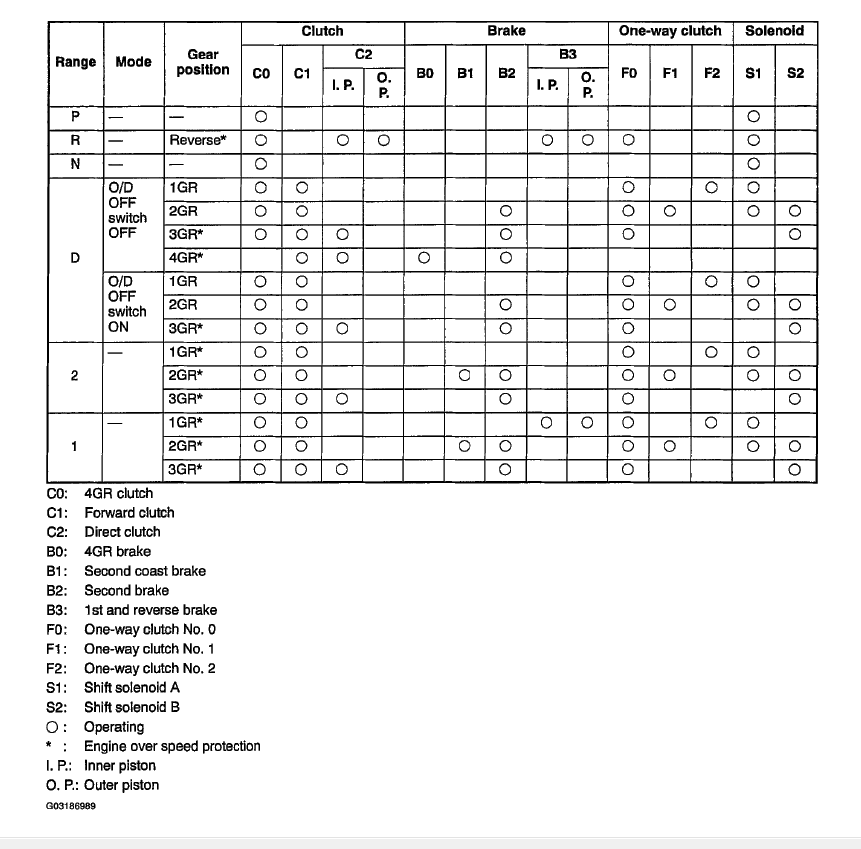

Gear diagram
